Used Wolf 9500 DT shredder available from Real Alloy. This machine is designed for high-volume size reduction across a broad mix of materials and waste streams.

Applications include wood, wood waste, tree roots, green waste, cable reels, pallets, construction and demolition wood, railway sleepers, waste tires, bulky waste, household waste, industrial waste, paper rolls, commercial waste, scrap metal, aluminum, end-of-life vehicles, appliances, car engines, electronic waste, and aircraft wrecks.

Features include a tiltable hopper for continuous material feed and strong throughput across demanding recycling applications.

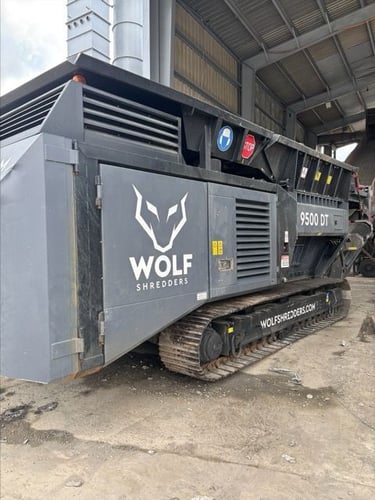

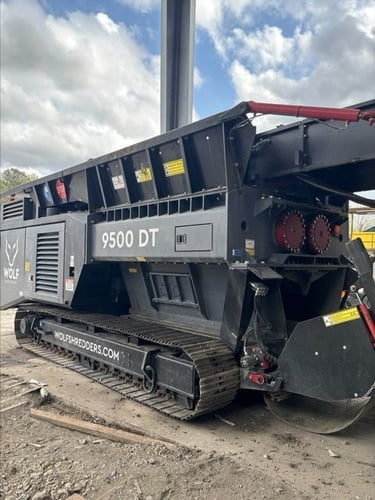

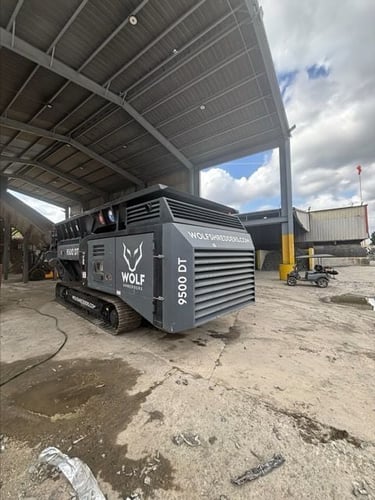

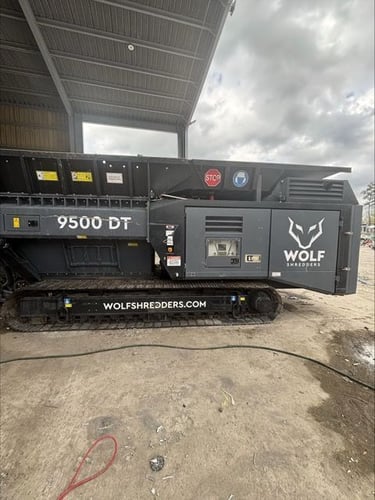

# EQUIPMENT FOR SALE: Wolf 9500 DT Shredder
---

## MACHINE OVERVIEW
* **Manufacturer:** Wolf
* **Model:** 9500 DT (Diesel Tracks)
* **Equipment Type:** Industrial Twin-Shaft Shredder
* **Total Weight:** Approx. 47 Tons
* **Transport Dimensions (L x W x H):** 11.36 m x 3.0 m x 3.22 m *(Folds easily and quickly for transport on a low-bed trailer)*

---

## TECHNICAL SPECIFICATIONS

### **Drive & Motor Compartment**
* **Drive System:** Transmission (Diesel or Electric)
* **Engine:** CAT C18 Stage 5 Diesel Motor
* **Power Output:** ± 765 HP
* **Hydraulics:** Double tandem pump
* **Maintenance:** Extra-large motor compartment for easy access to all components.

### **Shredding Shafts**
* **Working Length:** ± 2,500 mm
* **Diameter:** ± 950 mm
* **Rotation Speed:** ± 27 RPM
* **Design:** Extra strong shaft housing with specially designed angled knives.
* **Overload Protection:** Automatic return system. At maximum hydraulic pressure, the shafts automatically reverse direction to prevent jamming.

### **Feeding & Conveyor Systems**
* **Hopper:** Large, hydraulically tiltable feeding hopper designed for continuous material feed and optimal capacity.
* **Main Conveyor Belt:** Long, heavy-duty belt, ± 1,400 mm wide.
* **Discharge Height:** Hydraulically adjustable dropping height up to approx. 5,300 mm (33-degree angle).
* **Magnetic Separation:** Equipped with a height-adjustable Ferrous Metal Separator.

---

## APPLICATIONS & PERFORMANCE

Built as a heavy-duty primary shredder, the 9500 DT is designed to tackle the most difficult materials. It operates via remote control for efficient handling.

**Performance Highlight:**
* **Car Engines:** Shreds up to **15 tons per hour (t/h)**

**Typical Materials:**
* **Wood & C&D:** Wood, wood waste, pallets, construction & demolition (C&D) wood, tree roots.
* **Metals & Vehicles:** Scrap metal, aluminum, end-of-life vehicles (ELVs), car engines, aircraft wrecks.
* **General & Bulky Waste:** Household and industrial waste, commercial waste, tires, bulky waste.
* **Electronics:** E-waste and large household appliances.
