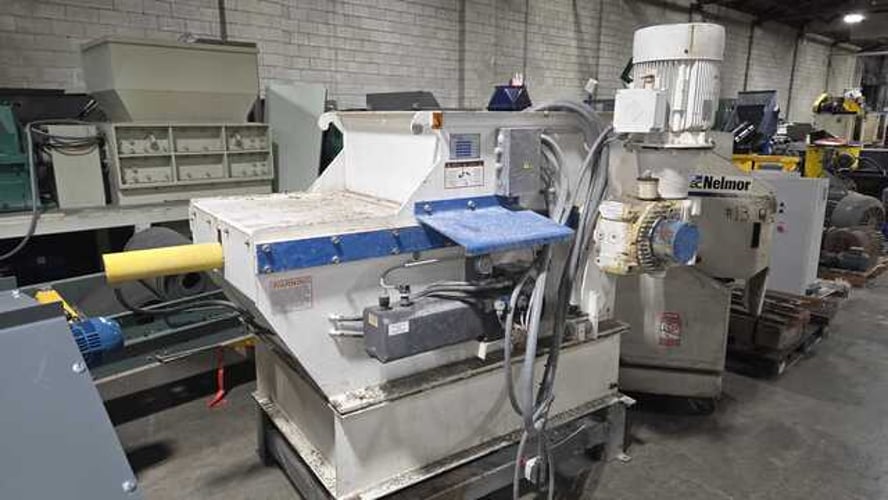

The Vecoplan RG 32 ANIV is a heavy-duty, low-speed, high-torque single-shaft shredder designed for reliable primary size reduction of tough and bulky materials. Featuring a hydraulically driven feed ram, robust rotor with replaceable knives, and interchangeable sizing screen, this machine delivers consistent throughput while minimizing wear and jamming. It is well-suited for processing insulated wire and cable, plastics, wood waste, RDF, and other industrial scrap, making it an excellent choice for recycling and material recovery applications.


Mechanical Specifications

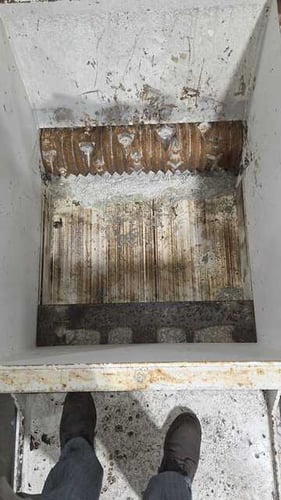

Rotor Type:
Single-shaft, heavy-duty Vecoplan “ANIV” configuration
Aggressive, low-speed, high-torque cutting geometry

Rotor Diameter:
~ 320 mm (12.6 in)

Rotor Length (Cutting Width):
~ 1,200 mm (47 in)

Knife System:
Replaceable square or rectangular rotor knives
Bed knives/counter knives mounted in an adjustable cassette
Knife material: hardened tool steel

Screen / Sizing:
Replaceable sizing screen beneath rotor
Typical screen sizes: 20–80 mm (¾"–3"), application dependent

Drive & Power

Drive Type:
Electric motor with heavy-duty gearbox
Belt or direct drive, depending on configuration

Motor Power (typical RG 32):
75–125 HP (55–90 kW)
(Exact HP depends on how it was ordered, but this is the correct range for RG 32 ANIV units from 2008)

Operating Speed:
Low-speed rotor (typically 60–120 RPM)

Torque:
High-torque shredding suitable for tough, bulky materials

Materials Commonly Processed
This model is well-suited for:
Insulated copper & aluminum wire
Cable (including armored & multi-conductor)
Plastics (purge, pipe, sheet, lumps)
Wood waste & pallets
RDF / SRF
Light metals (non-ferrous, size-reduced)
Tires (pre-cut or strips, depending on screen)

Throughput varies heavily by material and screen size, but typical ranges:
Copper / insulated cable: 1.5–4 TPH
Plastics: 2–6 TPH
Wood waste: 3–8 TPH
