General Overview

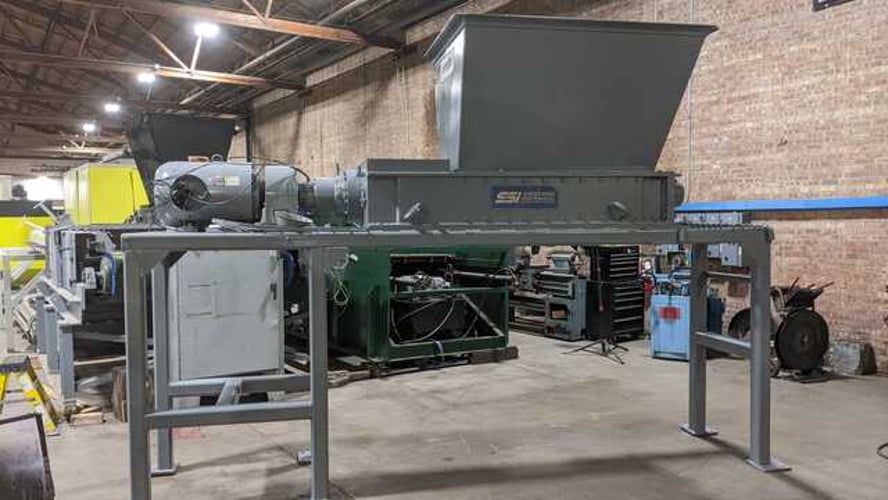

- **Model**: 1200E
- **Type**: Dual-Shaft Shear Shredder
- **Manufacturer**: SSI Shredding Systems Inc.
- **Application**: Suitable for shredding e-waste, tires, rubber, plastics, metals, wood products, batteries, and large materials.

Motor & Drive System
- **Primary Motor**: 50 HP, 3-phase, 60 Hz, 230/460V
- **Optional Motor**: 100 HP available
- **Drive Type**: Direct mechanical drive with gear reduction
- **RPM Range**: Approximately 17–22.2 RPM

Cutting System
- **Number of Shafts**: 2
- **Cutters per Shaft**: 27 knives, each 2" wide
- **Cutter Diameter**: 12.5"
- **Cutter Thickness**: 1.00"
- **Start Clearance**: 0.125"
- **Cutter-to-Cutter Clearance**: 0.010"

Cutting Chamber & Discharge
- **Cutting Chamber Dimensions**: 25" W x 52" L x 13.13" H
- **Chamber Opening**: 55" x 22"
- **Discharge Dimensions**: 25" W x 58" L
- **Bottom Discharge**: Yes

Physical Dimensions
- **Overall Width**: 46"
- **Overall Length**: 145"
- **Stand Height**: 55"
- **Weight**: Approximately 8,500 lbs

Electrical System
- **Voltage**: 460V, 3-phase, 60 Hz
- **Control Panel**: No Control Panel

Additional Features
- **Feed Hopper**: Included
