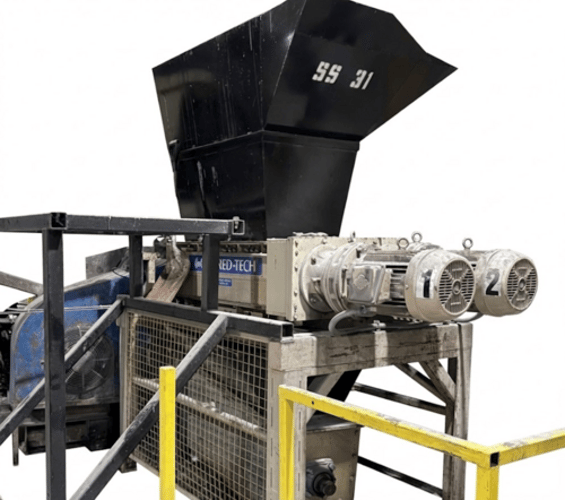

MODEL: Shred-Tech ST-50
TYPE: High-Torque, Low-Speed, Dual-Shaft Industrial Shredder
DRIVE SYSTEM: Electric (Hydraulic options available)

1. PERFORMANCE SPECIFICATIONS
-----------------------------
Throughput: 1 – 3 Tons/Hour (Material dependent)
Drive Motors: Dual Electric Motors (Standard)
Motor Power: Total System HP: 40 HP – 60 HP
(Available in 2 x 20HP, 2 x 25HP, or 2 x 30HP)
Voltage: 208V, 230V, 460V, 575V (3-Phase, 60Hz standard)
Cutter Drive: Electric gear-reduced drive
Control System: PLC with auto-reverse on overload, keyed power switch, hour meter

2. CUTTING CHAMBER & KNIVES
---------------------------
Cutting Chamber Dimensions (W x L):
- Option A: 21" x 30" (533 mm x 762 mm)
- Option B: 21" x 40" (533 mm x 1,016 mm)
- Option C: 21" x 50" (533 mm x 1,270 mm)

Knife Diameter: 10" (254 mm)
Knife Thickness: 0.625", 0.875", 1.2", 1.6" (Custom available)
Shaft Hex Size: 3 3/8" (86 mm)
Shaft Distance: 7 1/2" (191 mm) center-to-center

3. PHYSICAL DIMENSIONS & WEIGHT
-------------------------------
(Estimates for standard machine core; varies by hopper/stand)

Machine Length: 100" – 120" (2,540 mm – 3,048 mm)
Machine Width: ~45" (1,143 mm)
Machine Height: ~107" (2,718 mm)
Machine Weight: 4,900 lbs – 5,500 lbs (2,222 kg – 2,495 kg)
Hopper Opening: Matches cutting chamber length
Discharge Height: ~40" (Standard Stand)

4. STANDARD FEATURES
--------------------
- Hex Shafts: Heat-treated alloy steel for superior strength;
ensures easy knife removal (no keys to shear).
- Bulkhead Walls: Labyrinth barriers/bulkhead walls protect
bearings and seals from liquid and dust migration.
- Cleaning Fingers: Sectional fingers removable from top
for easy maintenance.
- Construction: Heavy-duty welded steel.

5. COMMON APPLICATIONS
----------------------
- E-Waste (Hard drives, circuit boards)
- Plastics (Purgings, bumpers, moldings, pipes)
- Wood (Pallets, crate waste)
- Medical Waste (Sharps, boxed waste)
- Product Destruction (Prototypes, off-spec goods)
- General Waste (Passenger tires, cardboard)
