44" x 96" Feed Opening
1-7/8" Thick Knives

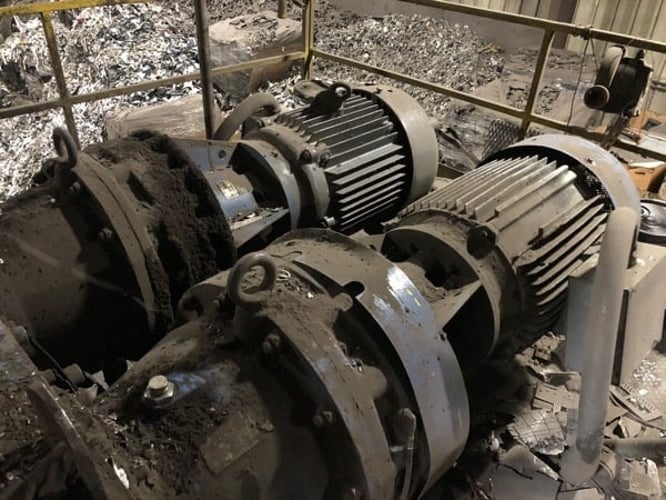

| **Motor** | 2 × 100HP, 3‑Phase, 480V |
| **Shafts** | 8‑inch hexagonal (up‑graded version) |
| **Knives** | 2‑hook, 4‑position counter‑rotating system |
| **Gearbox** | Sumitomo 29:1 gear‑reduced drive |
| **Additional Unit** | 1 × AZ200 (motor/controls omitted) + spare gearbox |
| **Control Panel** | Included (standard 3‑phase PLC interface) |
| **Operating Mode** | Slow‑speed, high‑torque shredding with pulling‑tearing action |
| **Speed** | 50–200RPM (typical for 100HP 29:1 reduction) |
| **Torque** | 2,900Nm peak (100HP × 29:1 ratio) |
| **Material Capacity** | Solid objects up to 3mm thickness (spec may vary by manufacturer) |
| **Notes** | Specifications subject to manufacturer variation; shafts allow custom mounting adapters. |

The 29:1 reduction delivers approximately 2,900Nm of peak torque, enabling the shredder to process many dense materials without exceeding motor limits—making it uniquely suited for high‑strength waste streams.
