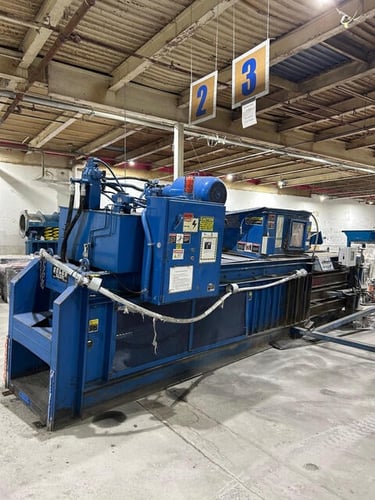

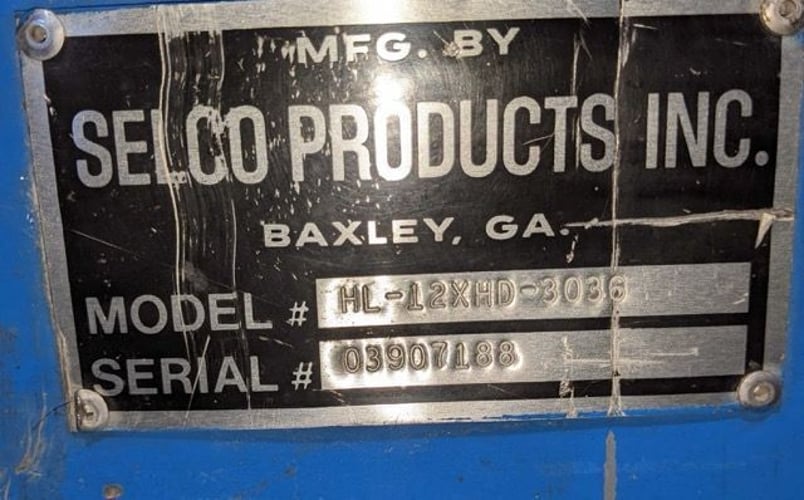

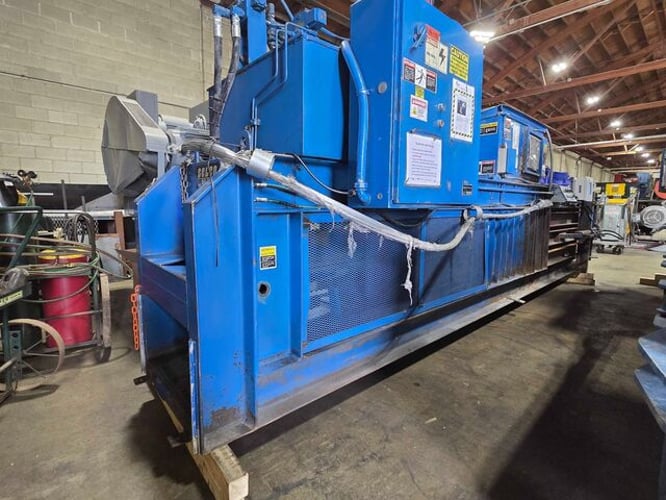

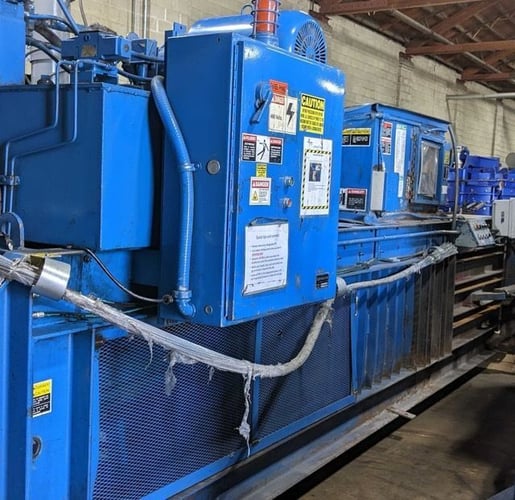

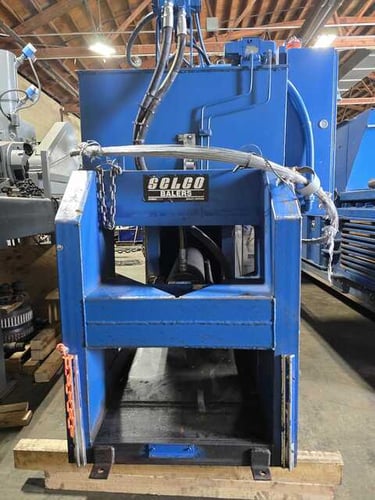

Model: 12XHD
Bale Size (W × H × L): 30" × 36" × 72" (76 × 91 × 183 cm)
Motor Power: 30 HP
' Cylinder Bore: 8" (20.3 cm)
Overall Dimensions (A – H):
A: 241" (612 cm)
B: 199" (505 cm)
C: 82" (208 cm)
D: 86" (218 cm)
E: 85" (216 cm)
F: 30" (76 cm)
G: 28" (71 cm)
H: 48" (122 cm)
Processes: High-Grade Paper, Newspaper (ONP), Cardboard (OCC), Aluminum UBC, Nonferrous Metals, Steel Cans, HDPE, PET
Key Insights:
• Faster Cycle: The 8″ bore drives ~20% quicker ram strokes versus 7″ cylinders—ideal for high-volume runs.
• ' Logistics-Ready: The 30×36×72 bale profile fits standard intermodal racks, slashing handling time by up to 15%.
• Extended Uptime: Low-RPM 30 HP motor torque curve reduces hydraulic pump wear by ~15%, cutting maintenance costs.
