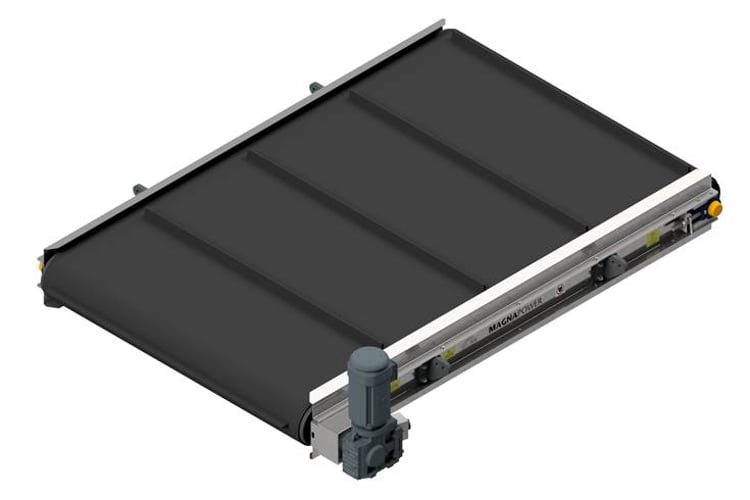

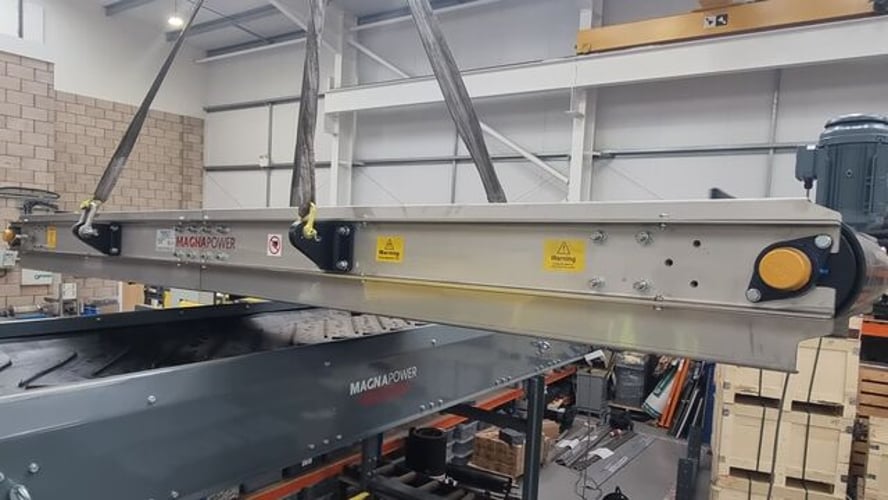

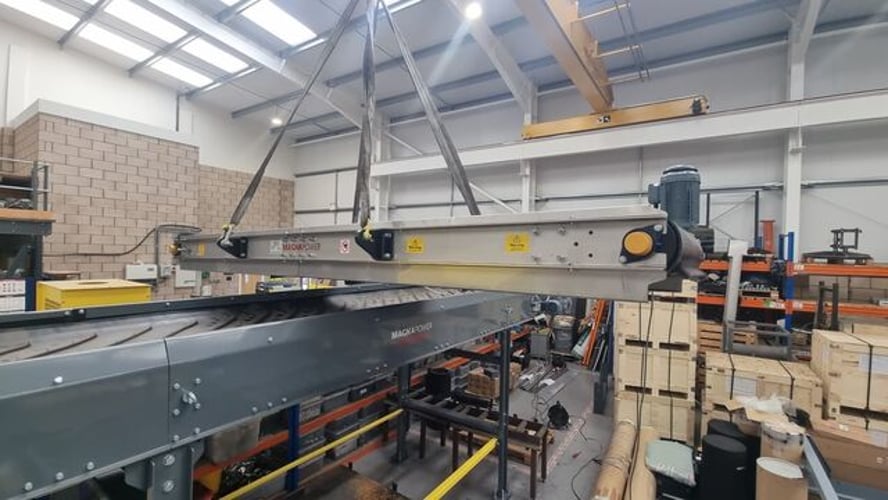

Overband, self-cleaning magnet for many baling wire applications, features extended length conveyor, wrap around guarding, unique shaft protection system and extended belt width.


Overall Dimensions (Nominal):
• Length (overall inc. flights): 3391 mm
• Width (overall): 2726 mm
• Height: 1491 mm
• Belt Widths:
• Product belt width: 1200 mm
• Overband belt width: 2000 mm
• Working Gap (typical): 350 mm
• Flight Depth: 50 mm
• Suspension Centres: 2290 mm
• Lifting Centres: 2390 mm
• Suspension / Lifting Lug Thickness: 25 mm
• Inside Lug Distance: 1355 mm
• Load at Suspension Points:
• Max ~1649 kg (one side)
• Max ~1342 kg (other side)



Electrical
• Drive Motor Power: 5.5 kW
• Supply Voltage: 400 V, 3-phase, 60 Hz
• Belt Speed (Overband): ~1.5 m/s
• Service Weight (Motor): 104 kg
• Electric Isolator: Supplied for belt drive motor



Installation & Safety
• Place overband between conveyor idlers where possible.
• Overband belt speed should be greater than the conveyor belt speed for optimal separation.
• All equipment within 1000 mm below magnet must be constructed from non-magnetic materials.
• Discharge chute (customer-supplied) must be non-magnetic and fit under belt edge.
• CAUTION: Open magnetic field – risk assessment required when installed.
