The grinder comes with a hydraulic lift for blade and screen changing.

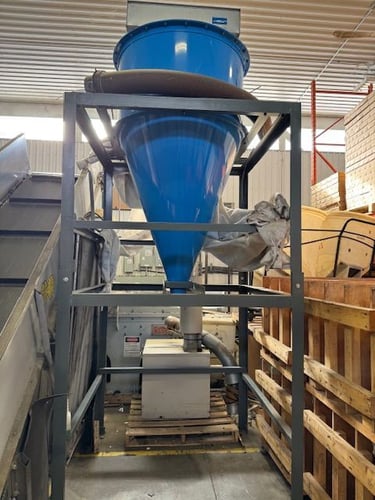

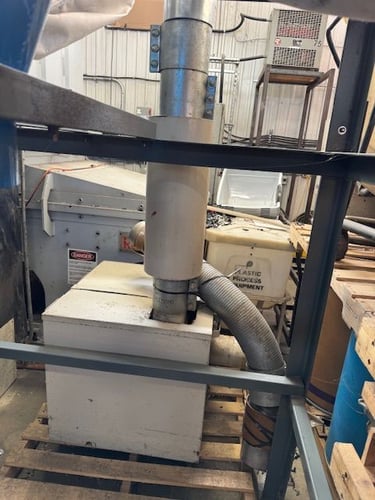

2 spare screens and a complete set of knives are included. Comes with a vac blower system and a stand for unloading into boxes.

General / Model Info

Manufacturer: Cumberland

Model: 1640X (1600X Series)

Type: Beside-the-Press Granulator (size reduction for plastic scrap)

Manufacturer Part Number: NDS1640X

Cutting & Throughput

Cutting Chamber: 16″ × 40″ (406 mm × 1016 mm)

Cutting Circle Diameter: ~16.54″ (420 mm)

Typical Throughput: ~1800 lbs/hr (818 kg/hr)

Rotor: 3-knife “open scooped” rotor with rotating end discs

Knives: 3 standard (5-knife optional; various configurations possible)

Motor & Performance

Standard Motor: 30 HP TEFC (Totally Enclosed Fan Cooled)

Motor Options: 25 HP, 30 HP, or 40 HP TEFC available

Drive: V-belt drive system

Weight & Discharge

Approximate Weight: ~4000 lbs (1818 kg)

Standard Discharge: 8″ pneumatic (vacuum take-off options from ~1.25″ up available)

Features & Construction

Pivoting hopper and drop-down removable screen cradle for easier cleaning/maintenance

Machined, bolted & doweled cutting chamber for durability

Double-sealed bearings and rotating end discs to reduce heat and wear

Low-profile, sound-attenuated infeed system suitable for robot, conveyor, or hand feeding

Safety: NEMA Type 12 controls with safety interlocks
