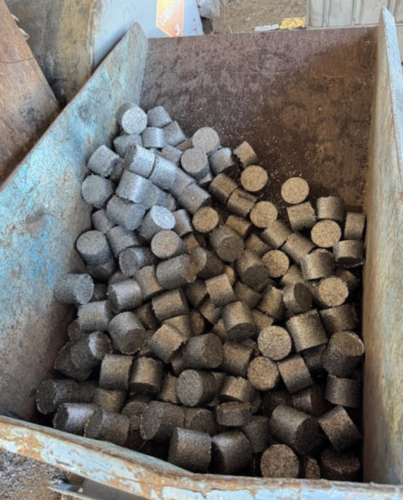

Briquette Size: 3.5" x 3.5"
Material Types: Aluminum, steel, cast iron, copper, brass, and others
Capacity (lbs/hr):
Aluminum: 1,000
Steel or Cast Iron: 2,000
Copper or Brass: 3,200

__________________________

Main Motor: 40 hp
Main Cylinder Bore: 10"
Total Force Available: 196 tons
Power Requirements: 100 amp, 460V, three-phase
Maximum Face Pressure: 40,744 psi
Maximum System Pressure: 5,000 psi
Weight: 8,500 lbs (3,855 kg)
Hydraulic System: Features a hydraulic oil reservoir, pump, and valves
Control System: Allen Bradley PLCs with options for Siemens Controls
Fluid Management: Integrated fluid collection and pumping system


_______________________________

Heavy-duty construction: Includes structural tubing frames
Integrated fluid collection and pumping system: For managing coolant or lubricants from the chips
Large capacity hoppers: For efficient loading of material

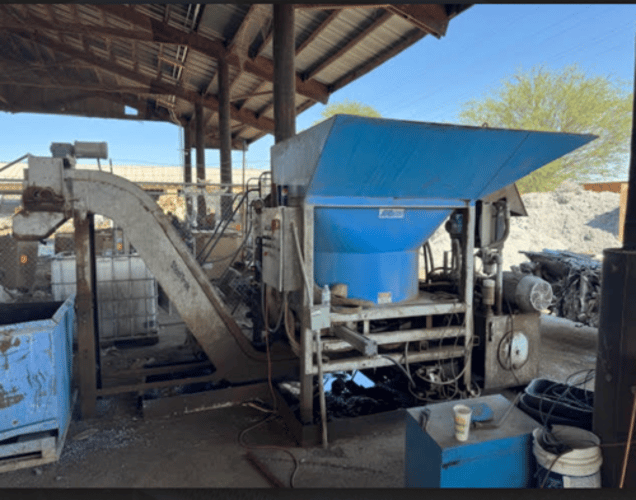

Steel chutes or take-away conveyors: For moving briquettes away from the machine
Can handle a variety of scrap materials: Including aluminum, brass, bronze, cast iron, copper, magnesium, steel, and titanium
