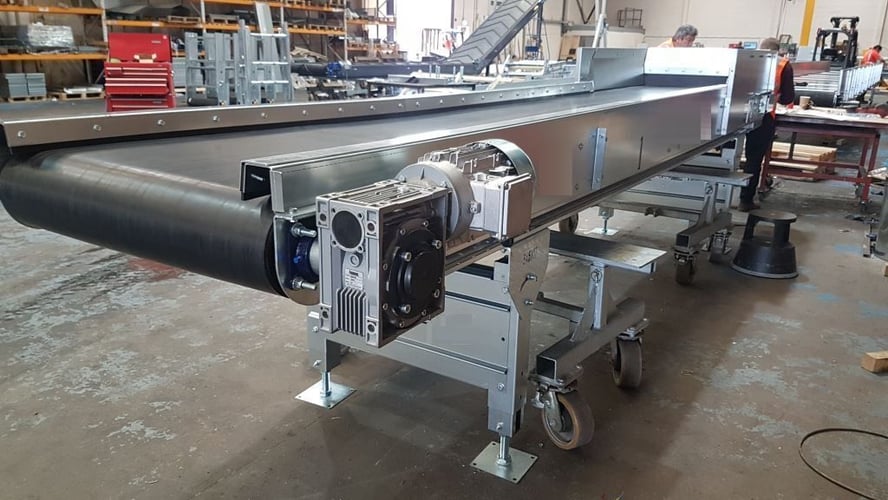

Flat Belt Conveyor


### Model: **MC900-470 Flatbed Conveyor (4.7m Long)**
**Dimensions**: 35.4" x 20 ft

---

## **General Specifications**
- **Conveyor Length**: 4.70 m
- **Ground Space**: 4.70 m
- **Feed Height**: 0.73 m
- **Discharge Height**: 0.73 m
- **Conveyor Angle**: 0.00 degrees (Flatbed design)
- **Conveyor Speed**: 0.30 m/s

---

## **Motor & Drive System**
- **Motor Power**: 1.5 kW
- **Voltage**: 460 V
- **Gearbox**: Motor integrated gearbox
- **Belt Pull**: 3749 N (Maximum carrying capacity)
- **Inverter**: 460 V, 0.3 kW – 1.5 kW (includes mounting bracket)
- **Speed Control**: 0.3 m/s (fixed speed)

---

## **Belt & Structure**
- **Belt Type**: MC900 Plain Belt (MOR) with Vulcanised Joint
- **Belt Width**: 35.4 inches
- **Primary Belt Scraper**: Included (single bracket)
- **Under Guarding**: Included for safety
- **Stand Height**: Heavy Duty (H/D) stand adjustable from 700 mm to 1200 mm

---

## **Safety Features**
- **Emergency Grab Wires**: Equipped with eye bolts over 10 m length
- **Under Guarding**: Protection to ensure safety during operation

---

## **Material & Load Capacity**
- **Maximum Belt Pull**: 3749 N
- **Maximum Carrying Capacity**: Ensure the conveyor does not exceed a belt pull of **3749 N** to maintain safe and efficient operation.
