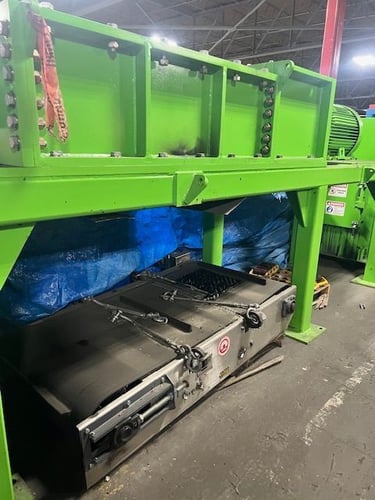

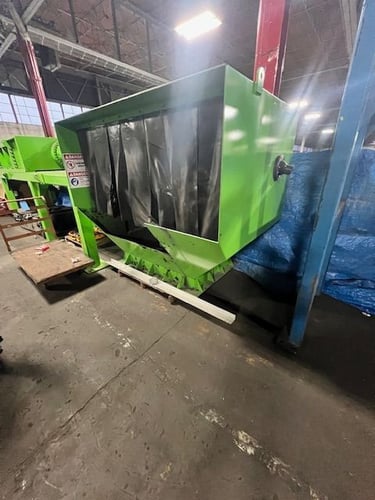

Komar Industries ES-5236-150 Twin Shaft Shear Shredder features counter-rotating, anti-jam drive with high strength steel alloy shafts and replaceable double-keyed cutters. Equipped with 150 HP (112 kW) Toshiba electric motor, 480VAC 3-Phase 60Hz power, and a standalone Komar control panel with PLC, safety relays, and hour meter showing approximately 1,328 hours. Includes infeed hopper and under-shredder discharge conveyor. The 52" x 36" infeed charge opening handles a wide range of materials including wood waste, pallets, drums, plastic, tires, e-waste, and general plant waste. Features Komar's patented Pro Cutter Locking System and Proprietary Bearing Protection System for extended uptime and lower operating costs.


KOMAR ES-5236-150 TWIN SHAFT SHEAR SHREDDER
=============================================

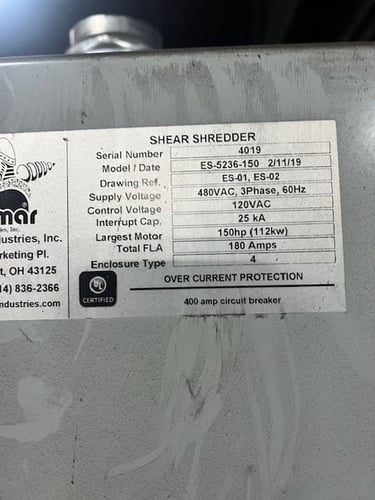

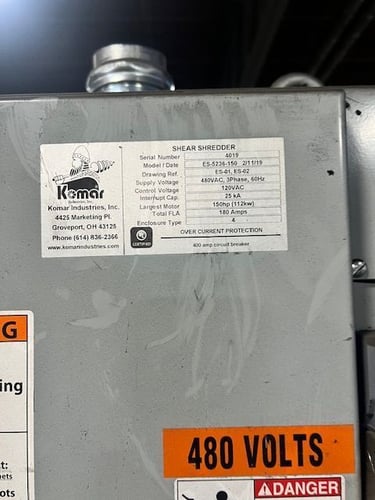

Manufacturer: Komar Industries, Inc.
Model: ES-5236-150
Serial Number: 4019
Year Built: 2019 (February)
Type: Twin Shaft Shear Shredder

DRIVE SYSTEM

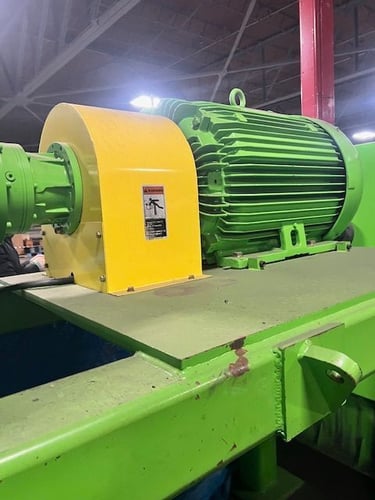

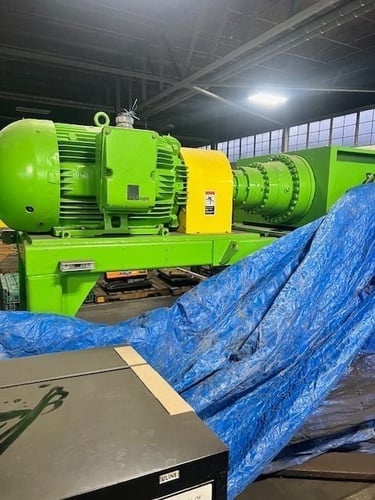

Motor: 150 HP (112 kW) Toshiba
Drive Type: Electro-Mechanical, Counter-Rotating
Anti-Jam: Yes, Automatic

ELECTRICAL
Supply Voltage: 480 VAC, 3-Phase, 60 Hz
Control Voltage: 120 VAC
Interrupt Cap: 25 kA
Total FLA: 180 Amps
Enclosure Type: 4
Over Current: 400 Amp Circuit Breaker

SHREDDER SPECIFICATIONS
Infeed Opening: 52" x 36"
Shaft Diameter: 6"
Cutter Thickness: 2" Standard
Number of Shafts: 2
Dimensions (LWH): 142" x 45" x 22"
Weight: ~12,500 lbs

FEATURES
- Patented Pro Cutter Locking System (PCLS)
- Proprietary Bearing Protection System
- Replaceable, Double-Keyed Cutters
- Heat Treated Keystock
- PLC Control Panel with Hour Meter
- Load Sensing, Auto Reversing Shafts

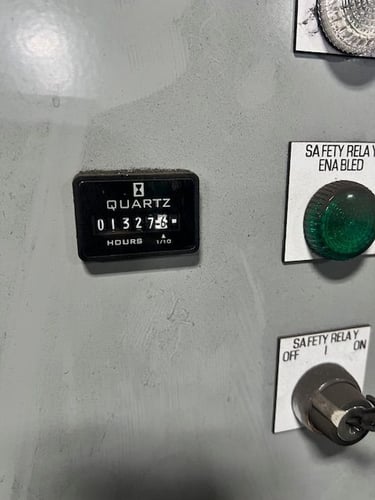

HOUR METER: ~1,328 Hours
