Description
• Bale Dimensions & Weight
– Bale size: 45″ W × 31″ H × ~64″ L (adjustable)
– Typical bale weights:
• OCC (corrugated): ~1,400 lb
• Newsprint / high-grade paper: ~1,500 lb
• PET / plastics: ~1,200 lb
• Solid waste / MSW: ~2,500 lb
• Cycle Time & Throughput
– Cycle time: ~100 – 150 sec (material-dependent)
– Throughput (approx):
• Bulk OCC: ~19 tons/hour
• MSW / dense waste: ~45 tons/hour

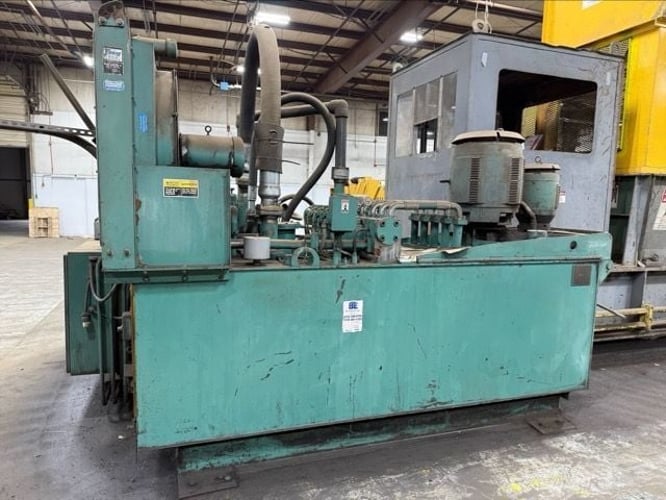

• Ram Force & Hydraulics
– Main compression ram: 12″ bore, ~160–198 tons force
– Eject (side) ram: 8″ bore, ~80–88 tons force
– Hydraulics: ~600–700 gal reservoir, air-oil cooler (~3 HP), fine filtration

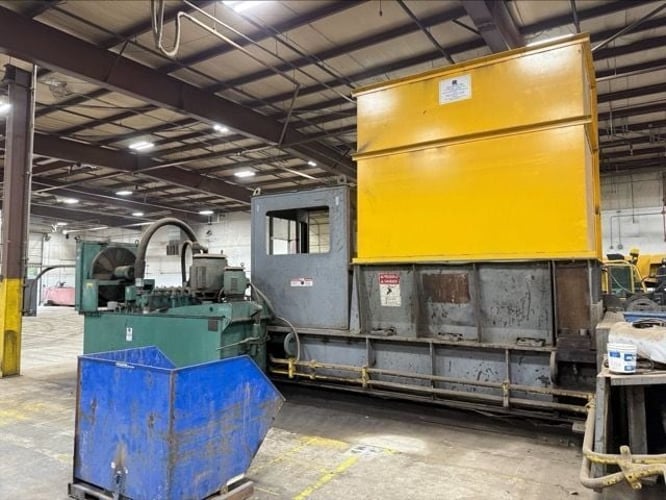

• Hopper & Feed Opening
– Top hopper: ~74″ × 108″
– Charge (feed) box: ~57″ × 96″
– Compression chamber: ~40″ × 29″ × 60″
• Power & Drive
– Standard motor: 100 HP, 460 V, 3-phase
– Optional dual / higher HP configurations
– Multi-pump hydraulic drive, soft start for main motor

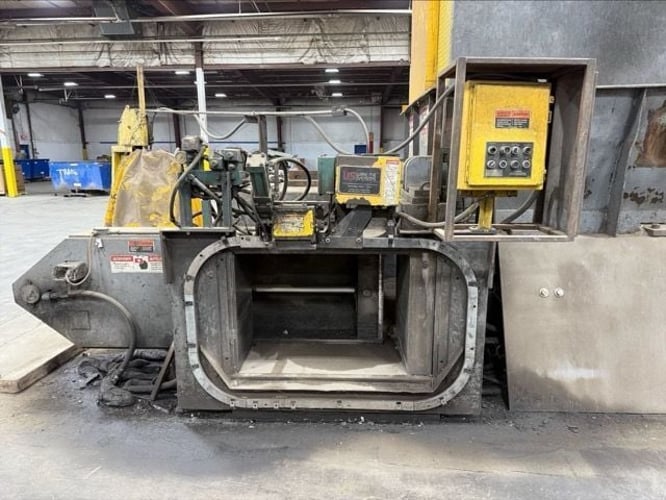

• Control & Features

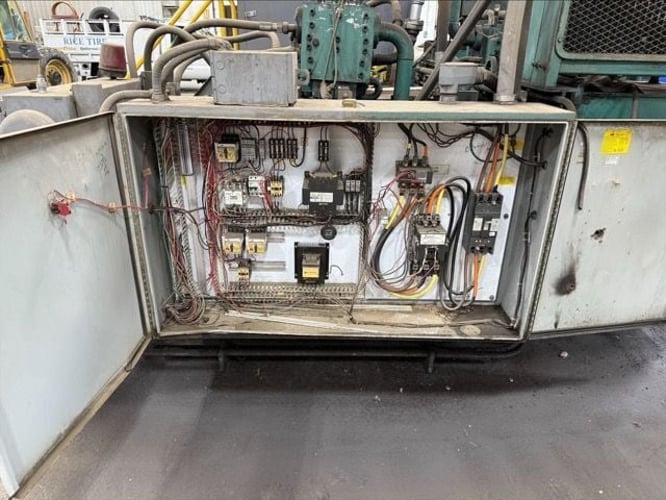

– PLC-based control with operator console & diagnostics

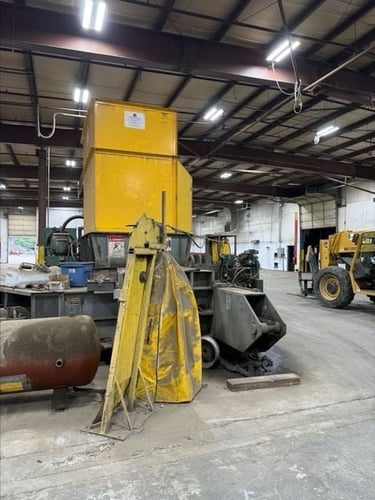

– Auto-tie wire tier (e.g. U.S. Wire Tie Model 341 or equivalent)
– Bale separation door (BR) & oversize release door (BD)
• Material Compatibility
Processes: OCC, newsprint, mixed paper, PET/HDPE, aluminum cans, mixed waste, nonferrous materials

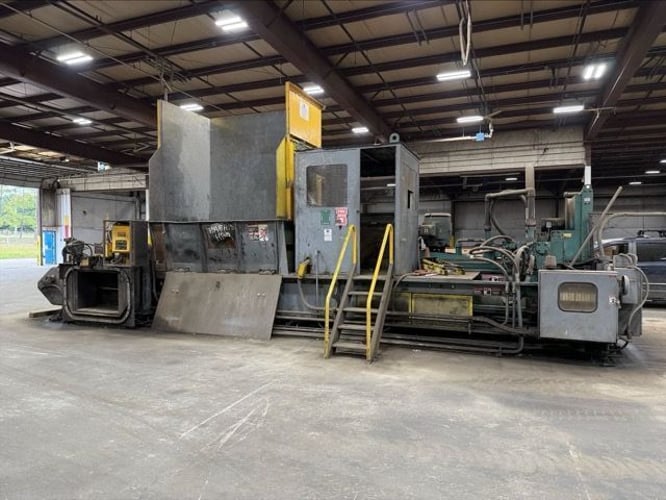

• Machine Size & Weight
– Footprint: ~34 ft long × ~10 ft high × ~21 ft wide
– Shipping weight: ~29 tons (base); up to ~46 tons with BR/BD options
• Optional Upgrades
– Dual or higher-HP drive packages
– Hopper extensions, diverter chutes, operator cabins (HVAC)
– Advanced control systems (e.g. Navigator Plus)
