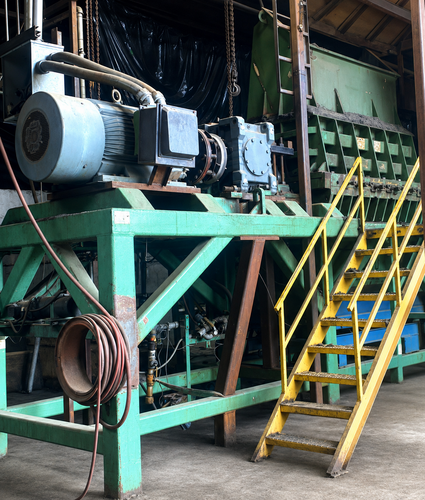

Granutech Saturn Systems Grizzly Super 80 (S80) is a size reduction and sorting line with an 80" cutting chamber, 34" rotor diameter, and approximately 10 Tons/Hour capacity. It produces output from 1/2" Minus to 1" Minus or Larger and is powered by either a 300 HP or 400 HP motor. Previously used on scrap tires, the line is suitable for other materials such as light non-ferrous metals and aluminum.


• Manufacturer: Granutech-Saturn Systems
• Model: Grizzly Super 80 (S80)
• Equipment Type: Size Reduction & Sorting Line
• Condition: Used

SUPER 80 GRIZZLY DETAILS:
• Cutting Chamber: 80"
• Rotor Diameter: 34"
• Capacity: Approx. 10 Tons/Hour
• Output: 1/2" Minus to 1" Minus or Larger
• Motor: 300 HP or 400 HP
• Heavy-Duty Gear Reducer
• Friction Clutch Overload Protection

DOWNSTREAM EQUIPMENT
• Amadas bulk feeder, 2015 — holds 5 tons shredded tires
• Granutech infeed conveyor, 2015 — 50' long
• Tectron metal detector, 2015
• Kinergy vibrating table — alerts on metal or rock that passed the metal detector
• Infeed conveyor, 2015 — 36"W x 50'L into grizzly
• Vibra Pro shaker table, 2015 — 6'W x 20'L

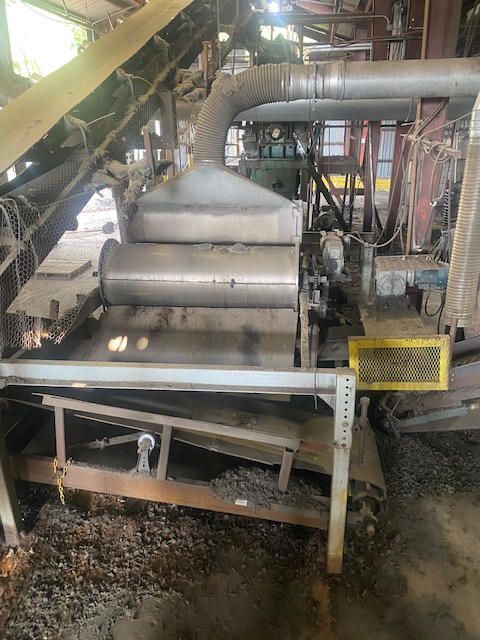

• Drum magnet, 2015 — 6' wide
• Vibra Pro shaker table, 2015 — 6'W x 12'L
• Drum magnet, 2015 — 6' wide
• Dust collection system by Dantharm — 35' tall, 60 HP blower, duct work, suction hoods
• Flamex fire suppression system, 2021
• (2) Clean wire discharge conveyors, 2015 — 36"W x 40'L and 36"W x 50'L
• Rubber conveyor belt, 2015 — 24"W x 15'L
• Rubber inclined belt, 2015 — 24"W x 20'L
• Eriez shaker table, 2015 — 36" wide, feeds Eriez drum magnet
• Eriez drum magnet, 2015 — 36" wide, 24" diameter
• Dirty wire discharge conveyor, 2015 — 24"W x 20'L
• Dirty wire discharge conveyor, 2015 — 36"W x 35'L
• Clean rubber conveyor, 2015 — 24"W x 18'L
• Clean rubber conveyor, 2015 — 24"W x 20'L
• Final discharge clean rubber conveyor, 2015 — 36"W x 40'L
• Crossbelt magnet, 2015 — 36"
• Head pulley magnet belt, 2015 — 36"W x 10'L
• Dirty wire discharge conveyor, 2015 — 12"W x 20'L

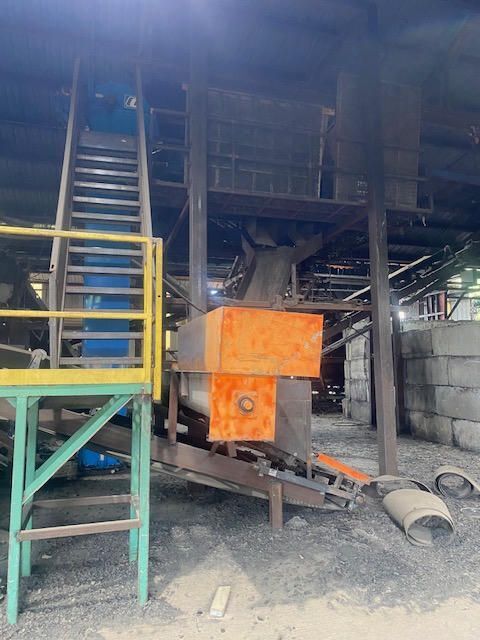

• Bucket elevator by Universal, 2015 — 20' tall
• Rotex double deck screener, 2015 — 4' x 8', with stand and catwalk
• Eriez vibrating feeder, 2015 — 24" wide
• Rare earth drum magnet, 2015
• Eriez vibrating feeder, 2015 — 24" wide
• Rare earth drum magnet, 2015
• Rare earth head pulley magnet
• Discharge conveyor, 2015 — 36"W x 35'L
