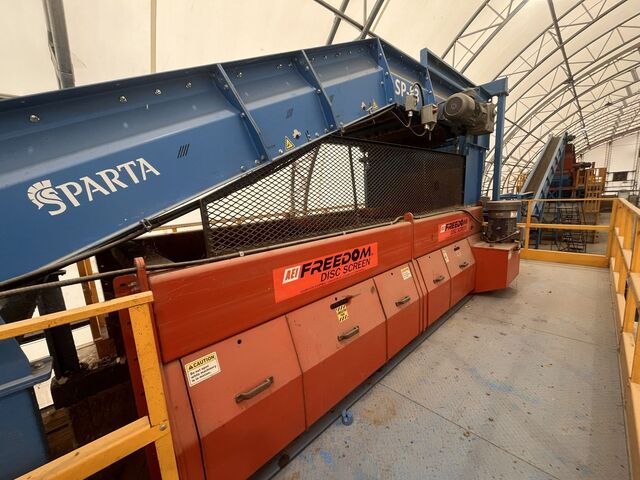

7' W x 14' L Heavy Duty Used Freedom Disc Screen. Manufacturer: Aggregates Equipment AEI. Model: DS4000 S90. AEI DS4000 S90 heavy-duty Freedom Disc Screen with a 7' x 14' screening area for recycling and difficult material streams. Key specifications: Model: DS4000 S90; Screen Size: 7' W x 14' L; Screening Area: Approx. 98 sq. ft; Motor: 15 HP; Motor Speed: 1,800 RPM; Electrical: 575V; Approx. Weight: 10,800 lbs. Full details are on the spec sheet.


• Manufacturer: Aggregates Equipment, Inc. (AEI)
• Model: DS4000 S90
• Type: Freedom Disc Screen
• Condition: Used
• Screen Size: 7' W x 14' L
• Screening Area: Approx. 98 sq. ft.
• Weight: Approx. 10,800 lbs.
• Electrical: 575V

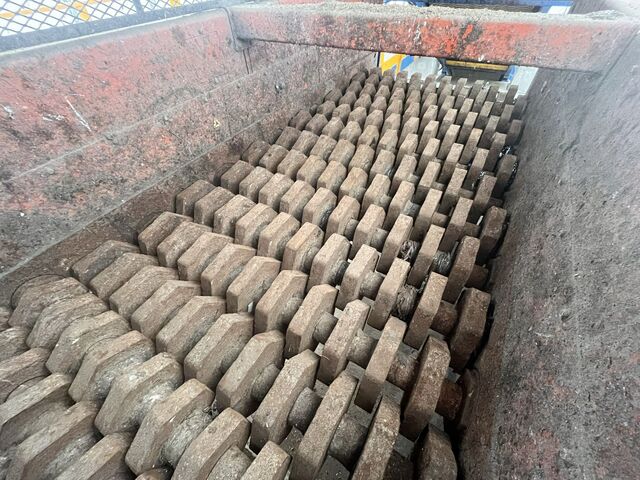

• Disc Material: HARDOX Wear-Resistant Steel
• Shaft Configuration: Multiple Parallel Rotor Shafts
• Bearings: Heavy-Duty Pillow Block Bearings
• Drive: Electric Gear Drive
• Speed Control: Electronically Adjustable
• Cut Point: Adjustable / Application Specific
