The Eldan FG952 is a high-speed, single-shaft granulator, ideal for producing consistent, fine (~6mm) granules at high throughput. Built with durable, regrindable knives and flexible screens, it’s a strong choice for industrial recycling lines as the last processing step.


Key Details
Rotor & Knives

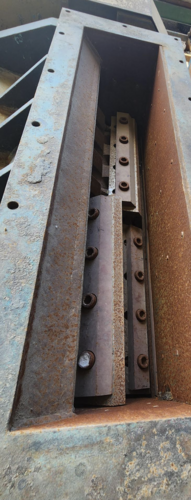

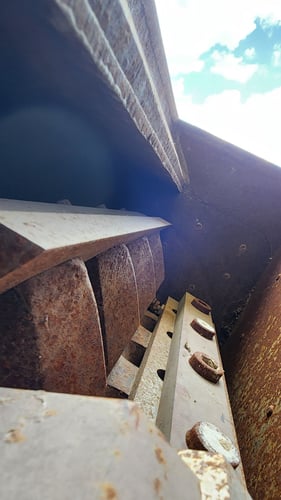

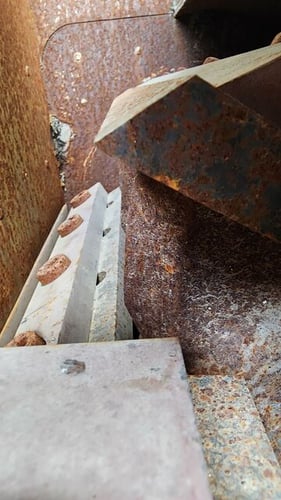

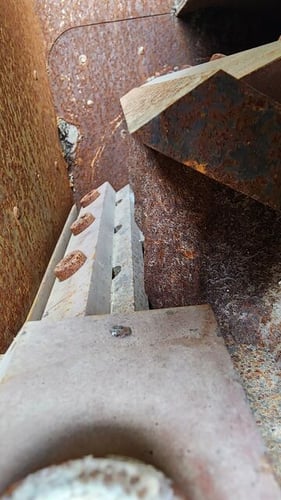

Rotor width: 950mm with 12 flying knives and 4 static knives
Rotor speed: 475rpm

Motor & Capacity

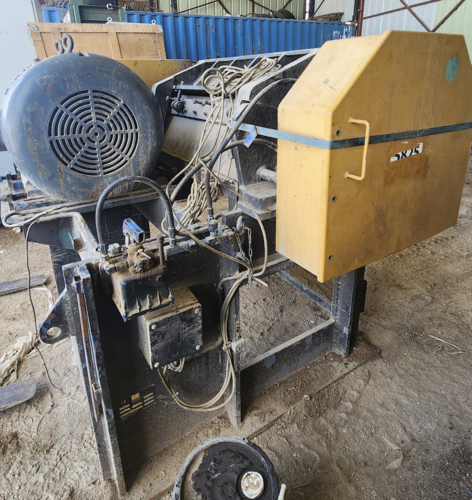

Powered by a 75kW electric motor (standard voltages: 200/440/480V)
Throughput: up to approximately 3500kg/h (~7,700lb/h)

Granulate Output & Screens
Typically uses a ~6mm screen for fine granules
Offers interchangeable screens to adjust output size

Size & Weight
Dimensions: ~1940×1960×2800mm
Machine weight: ~4400kg (~9,700lb)
