Includes Discharge Conveyor w/ Magnetic Pulley

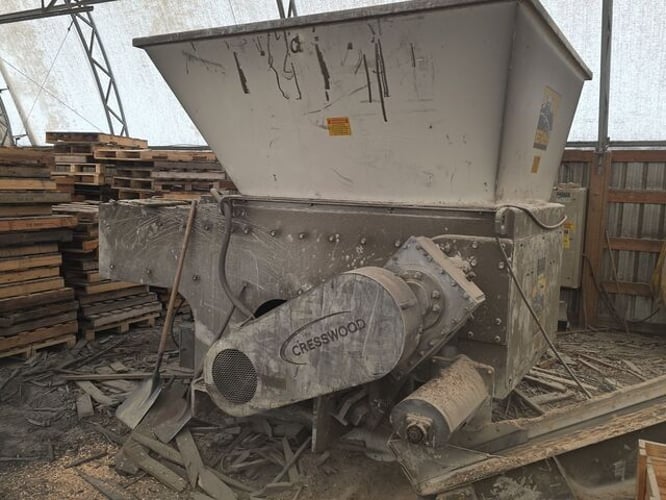

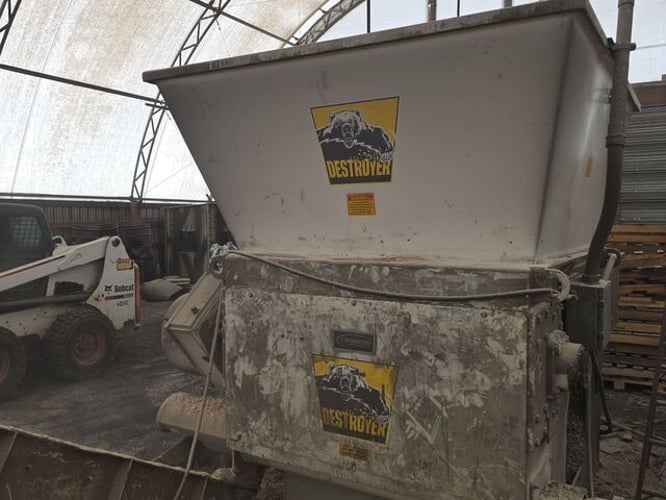

Cresswood HF 60-60 LR — Single-Shaft Hopper-Fed Low-RPM Destroyer Shredder

Type: Single-Shaft Hopper-Fed Low-RPM Destroyer Shredder

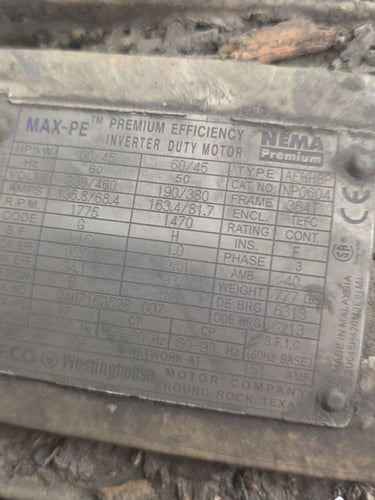

Motor: 75 HP (confirmed by Machinery Associates HF60/75 and Carolina Machinery Sales listings)
Rotor Length: 60 inches
Rotor Diameter: 16 inches
Rotor Type: V-Rotor Destroyer Cutterhead
Cutting Chamber: 60" x 60"
Grinding Head Speed: 50-150 RPM (LR series standard)
Shaft Diameter: 4 inches
Cutter Teeth: 70-84 (LR series)
Frame Thickness: 3/4 inch
Discharge: 10-inch diameter chip auger

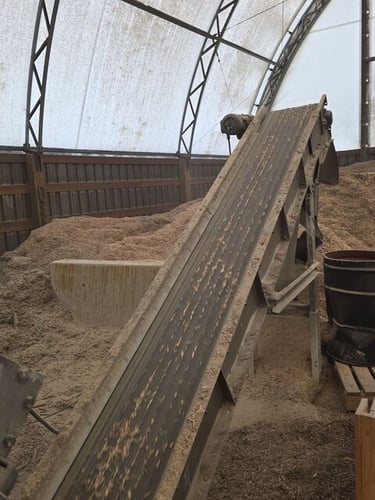

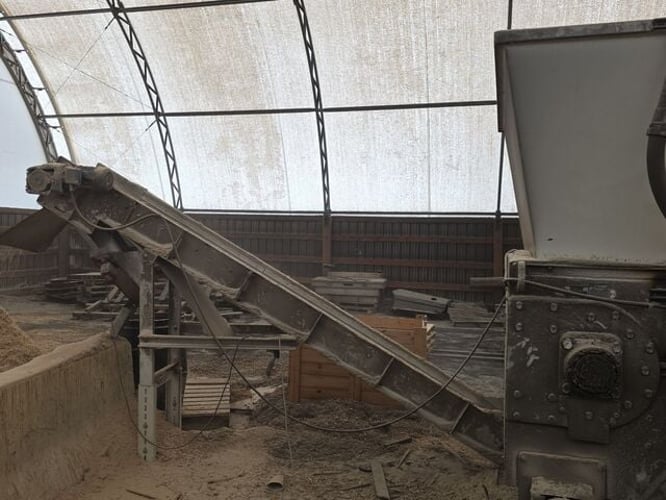

Outfeed Conveyor: Included
Magnetic Pulley: Included with discharge conveyor
Fluid Clutch: Yes (standard on all Cresswood models)
Voltage: 460V, 3-phase, 60Hz

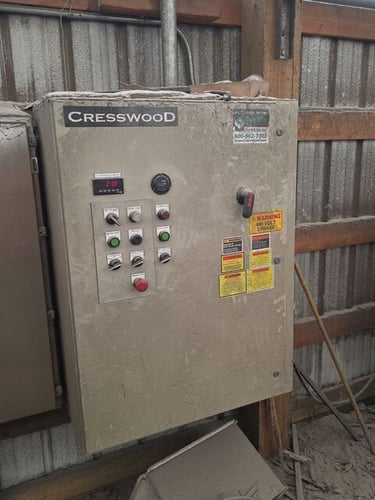

Control System: PLC Controlled Hydraulics
Hopper Volume: 5 Cubic Yards
Estimated Shipping Weight: 13,500-15,000 lbs
Estimated Floor Area: 99" x 130"

Features:
- Low Noise for Inside Use
- PLC Controlled Hydraulics
- Rugged Steel Structural Frame
- Low RPM = LOW Energy Consumption
- Tapered Roller Bearings
- Replaceable Anvil Supports
- Cutterhead Geometry Yields Maximum Output
- Low Tooling Costs (Indexable Teeth)
- Screen Sections for Easy Handling
- Easy Servicing Cutterhead Design
- Heavy Steel Fabricated Gear Box
- Fluid Clutch
- Drive Train Protection System

Applications: Pallets/Crates, Particle Board, Blocks/End Cuts, Plastic Purgings, Plastic Recycling
