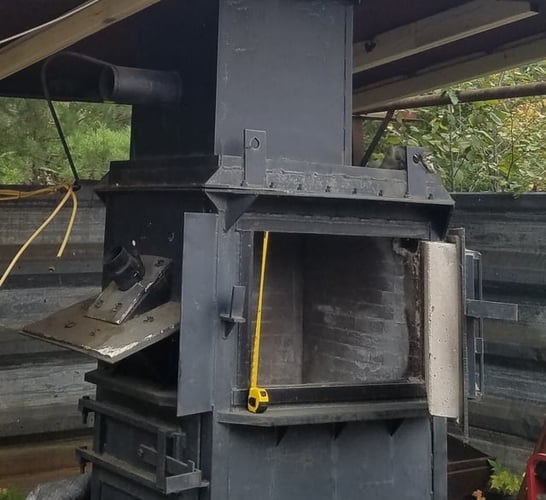

400-900 Lbs Per Hour Approximate Capacity

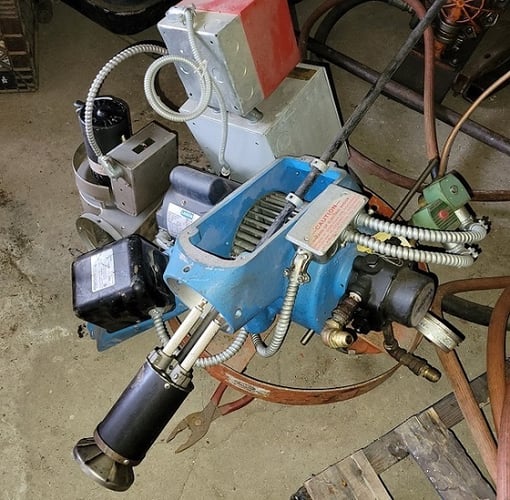

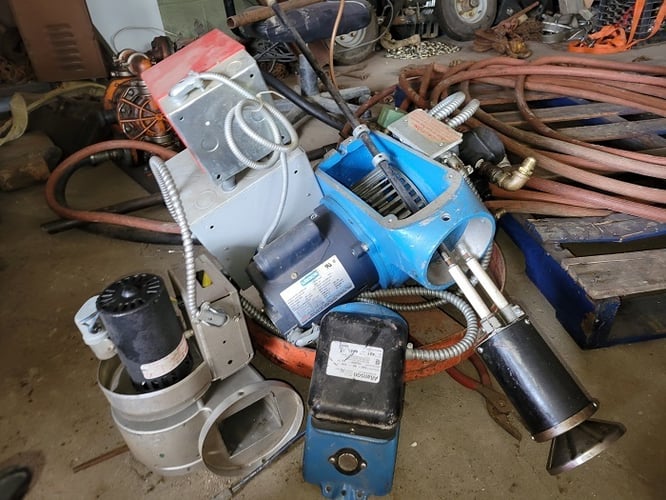

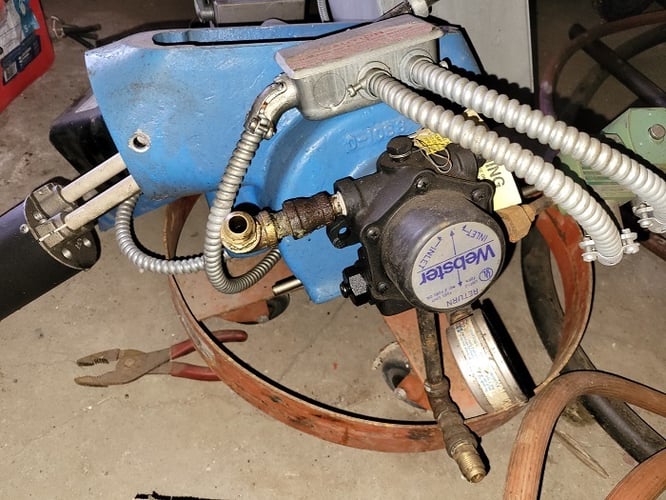

Dual Fuel Burner

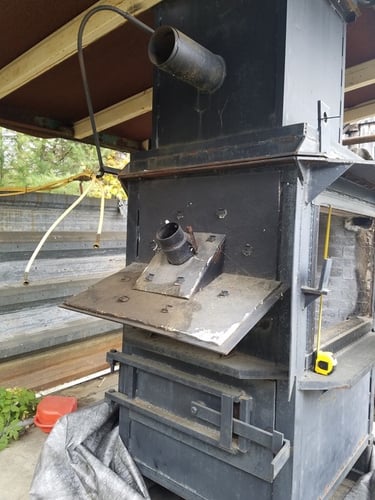

One Man Operation * Side Feed
Unit Includes Probe & Data Logging Unit
Large Feed & Rake Out Openings Takes Whole Transmissions, Motor Blocks, Pistons, Lawnmowers,
Zinc Lead, Aluminum, Lead Cable, Die Cast

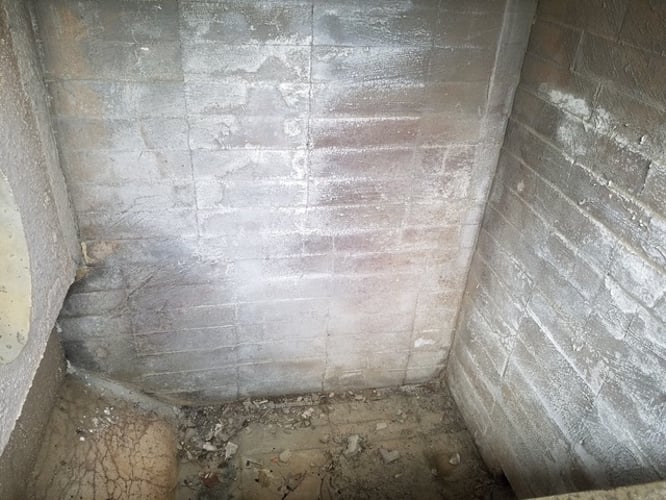

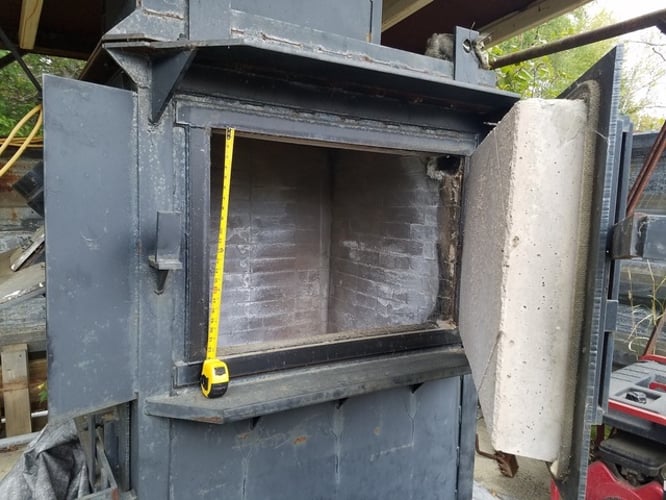

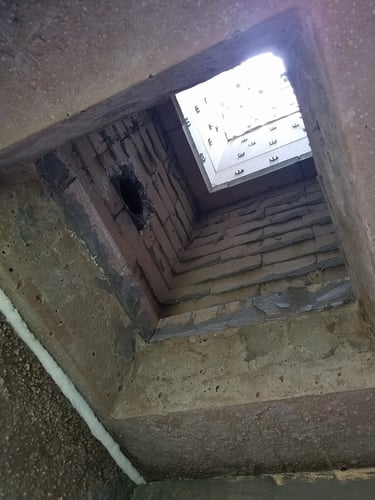

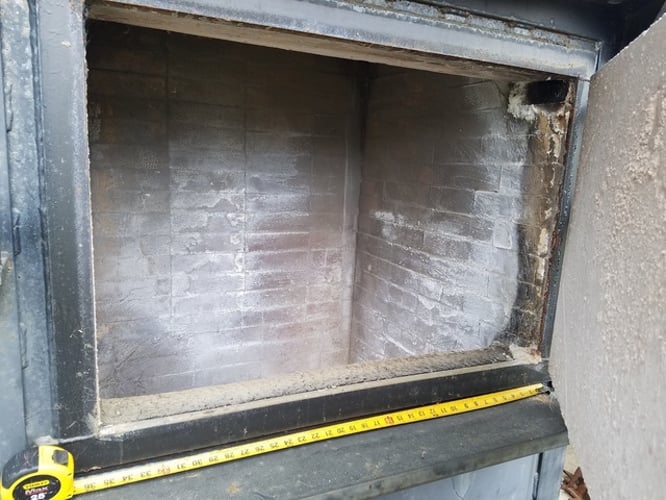

Feed Opening: 23" x 35" Inside Chamber 27" x 37" x 50" Holds Over 500 Lbs Of Aluminum At A Time
Burner Capacity: 750,000 - 1,000,000 BTU'S1/4" Steel Shell 4 1/2" Of Fire Brick
Approximate Fuel Cost: 1 1/4 Cents Of Fuel To Generate Each Lb Of Ingot Wt.
Rake Out Door: 27" x 11" 3000 Lbs Of Refractory Brick ( Extra Thick).

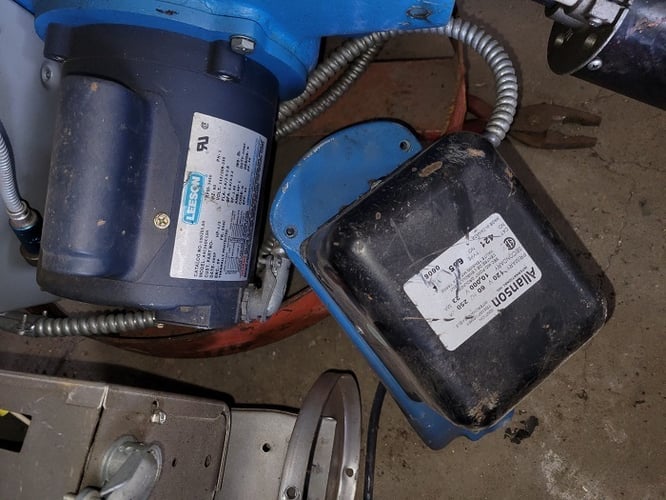

Switch Power Control With Single Phase 110 Volt Motor. All Self-Contained on Steel Base
Accessories: Two 500lb Sows, Two Rakes, 1 Plug
