**Equipment Description**:

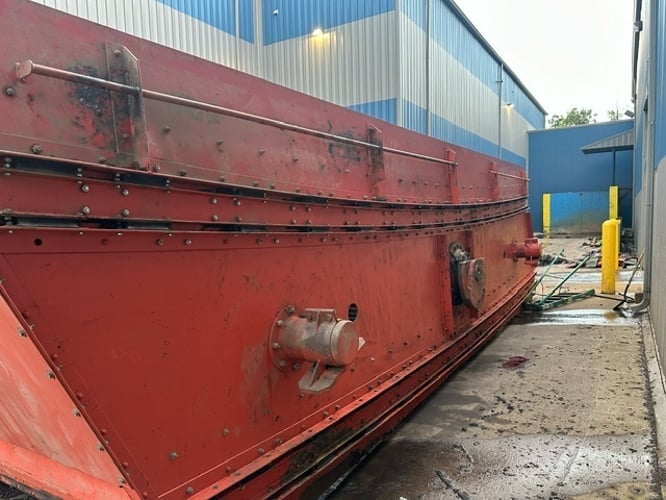

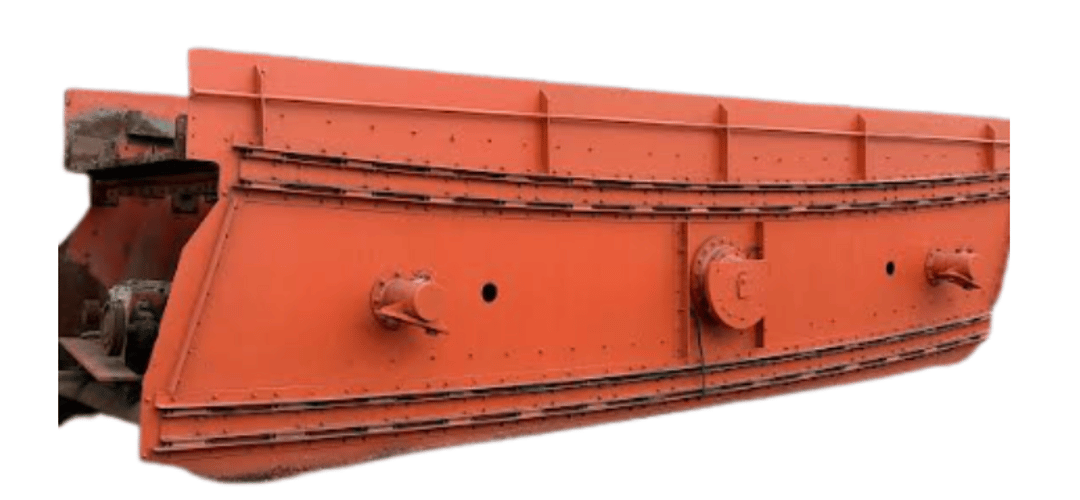

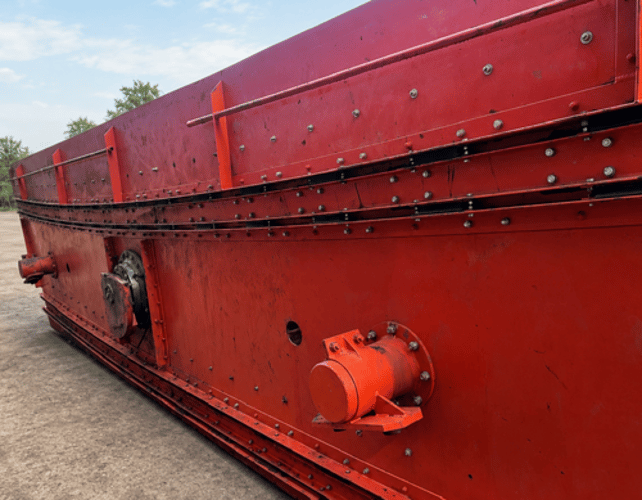

• **Model**: BIVITEC® Vibratory Screen
• **Size**: 7' x 30' (2400mm x 9000mm)
• **Deck Configuration**: Single/Double Deck (as available)
• **Screen Mat Material**: Highly wear-resistant polyurethane
• **Screen Type**: Dual-vibratory action with flexible screen mats

**Key Features**:
• Eliminates blinding and plugging for uninterrupted screening
• High screening capacity with a large effective area
• Rugged construction for long life and minimal maintenance
• Efficient for high-moisture and difficult-to-screen materials
Suitable for a wide range of materials, including:
• Manufactured sands, wood waste, shredded tires
• Incinerator ash, clay, compost, and more

**Technical Highlights**:
• **Drive System**: TEFC motor with V-belt drive and cardan shaft
• **Vibration Mechanism**: Dual-weight dynamic tensioning (up to 50g)
• **Screen Acceleration**: ~2g for box, up to 50g for mats
• **Structure**: Heavy-duty, weather-resistant steel frame
• **Energy Efficiency**: Low power consumption for high output
• **Optional Configurations**: Banana deck design for enhanced capacity

**Condition & Availability**:
• **Used Unit**: Fully inspected and operational
• **Availability**: Immediate / Upon Request
• **Shipping**: Freight options available upon request

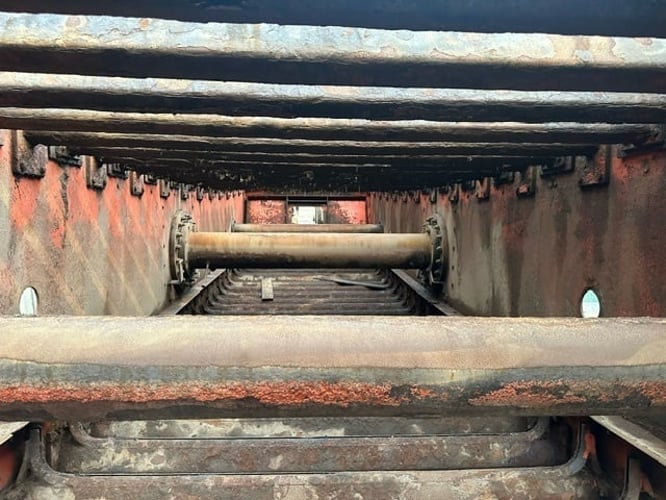

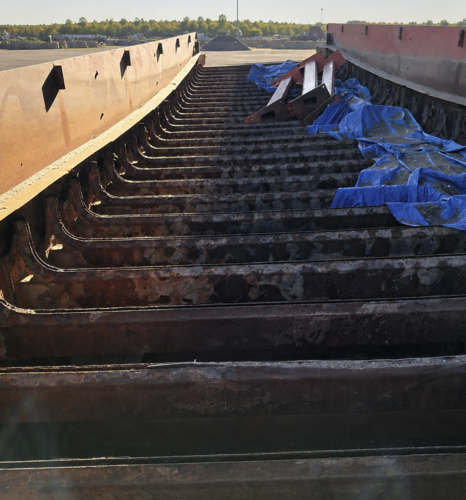

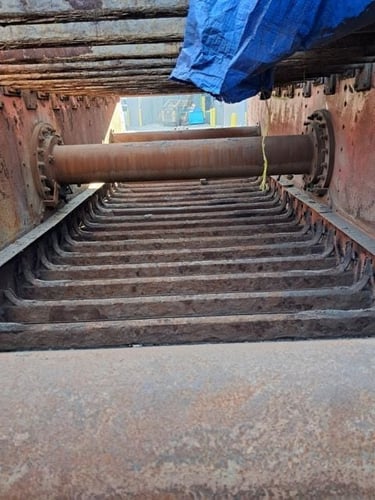

• **51 Screen Plates**: Approx. 104" x 11" w/ 5/8" OD Holes.

**Applications**:
• Aggregates, recycling, compost, C&D waste, auto shredder fluff, etc.
• Engineered to handle variable material conditions effectively.
