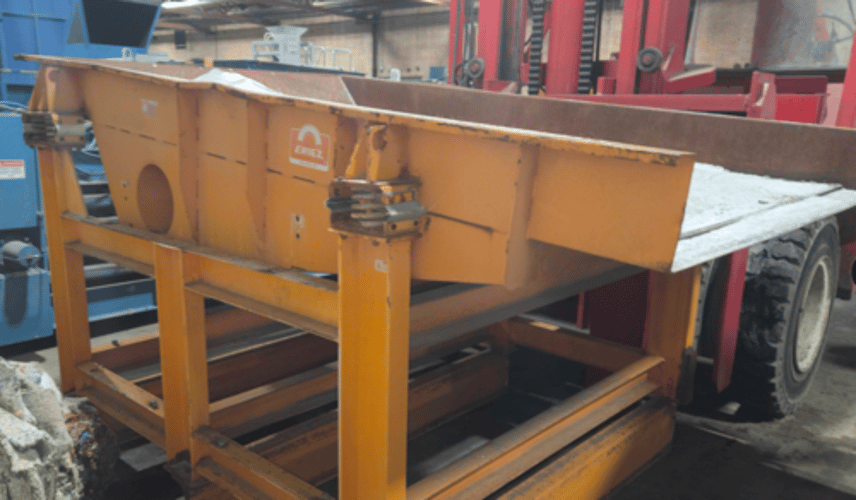

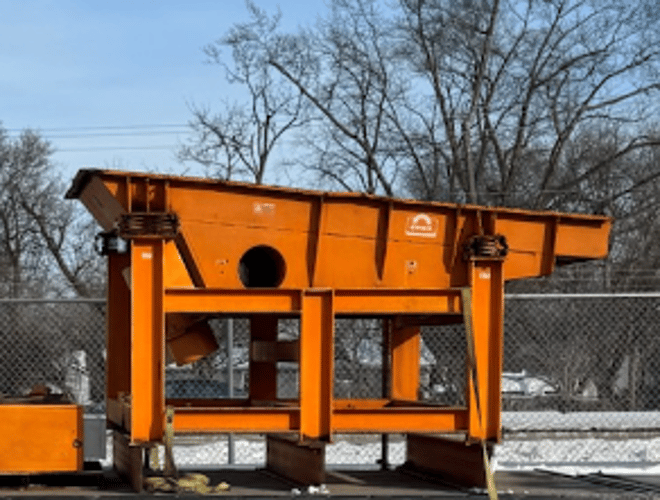

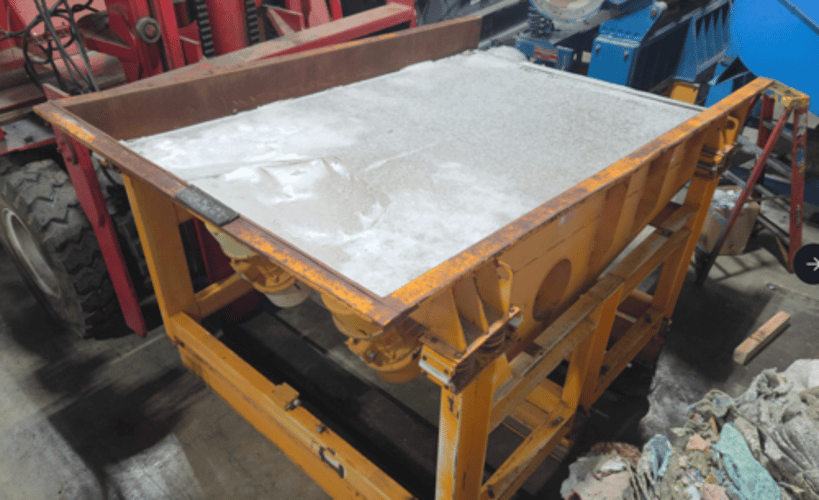

Equipment Type: Heavy-Duty Vibratory Feeder / Conveyor

(2) 3.35 HP 3/60/230/460 Volt Electric Motors
80" Wide x 120" Long Effective Pan Dimensions

Electrical:
• Input Voltage: 460 VAC
• Frequency: 60 Hz
• Phase: 3-Phase (standard industrial)
• Control: SCR/Variable Amplitude controller required

Mechanical:
• Feed Width: 80 in (2,032 mm)
• Drive Type: Brute Force twin synchronous vibrators*
• Motion: Vibratory, spring-mounted system
• Typical Mount: Base or suspension

Capacity & Use:
• Designed for bulk material handling/meters ahead of screens, crushers, conveyors*
• Throughput driven by material properties and feeder tuning

Construction:

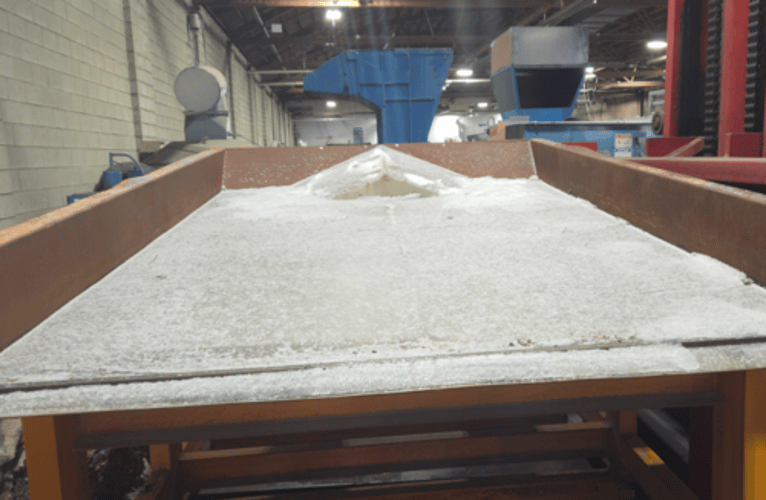

• Rugged steel pan/trough (liner options available)
• Isolation springs and counter-rotating motors for balance

Nameplate ID:
• Serial Number: ~199671

Notes:
*Eriez Brute Force heavy-duty feeders are a style of mechanical vibratory feeder for high-volume materials and rugged duty, with limited feed rate adjustability versus electromagnetic models.
