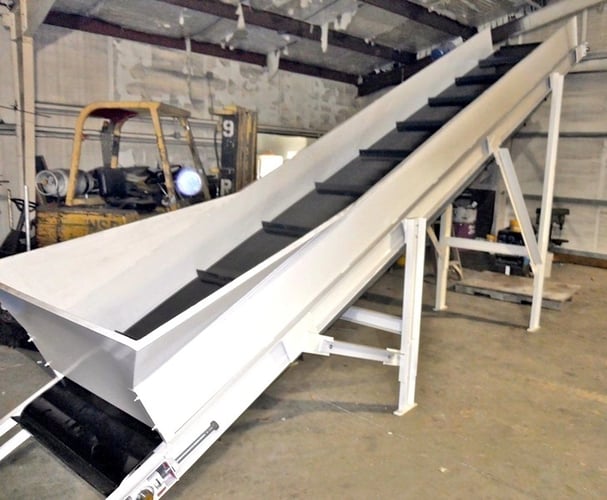

48" Wide x 18' Long
Cleated Belt--2"

Belt Width & Length: 48" wide x 18' long

Side Wall Height: 12" high sides

Belt Type: Cleated belt with 2" high cleats on 24" centers

Feed Roller:

6" diameter

Mounted with bearings in a heavy-duty slide frame for easy belt alignment adjustment

Drive Roller:

8" diameter

Driven by a 2 HP motor via chain and sprocket system

Designed for easy maintenance

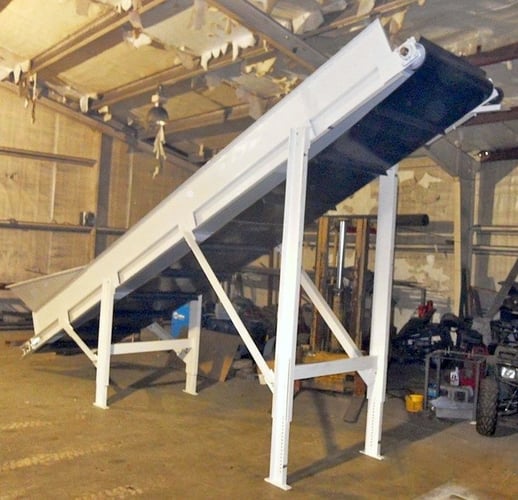

Conveyor Height:

Bottom of conveyor: approximately 6" off the floor

Exit height (floor to bottom of drive roller): approximately 110" (adjustable)

All support legs include 6" height adjustment

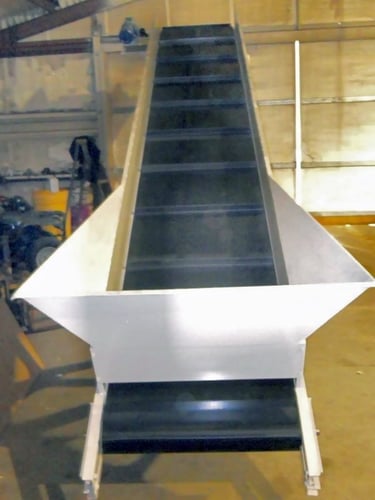

Bottom Hopper:

60" wide

Top of hopper: 42" off the floor

Suitable for feeding via box dumper or front-end loader

Electrical Requirements: 460V / 3PH / 60Hz
