Engineered for removal of iron and magnetic metallics from shredded or size segregated aluminum where high quality aluminum output is required.


Combined magnetic system configuration:
- Continuous pole.
- Deep magnetic field.
- Non-deteriorating.
- Rare earth or ferrite magnetics (Rare Earth Standard)
- Deep field & high intensity magnetic unit for top fed retention.
Other features:
- Manganese impact/wear resistant shell.
- Stainless steel end flanges (approx 2").
Includes:
- SEW geared motor unit.
- Chain drive.
- Motor gearbox base frame.
- Lifting points.
Optional accessories (not included):

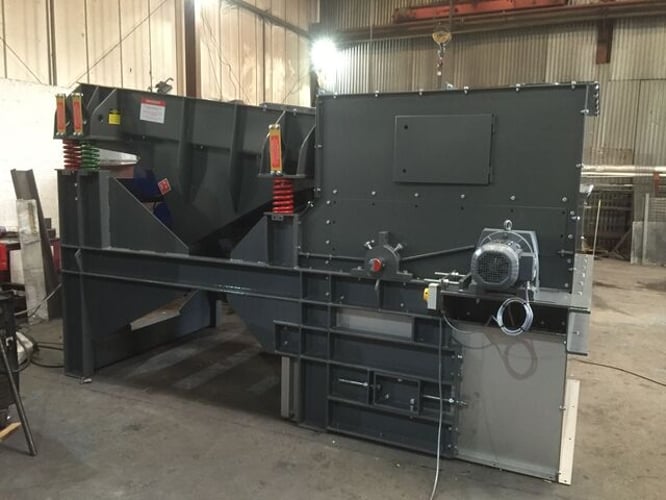

- Optional 1.2m x 3m long heavy duty vibratory feeder with 8mm thick tray section, 8mm Abro impact liner at first 1m section. 500mm non-magnetic end section, and (2) 2.6kW motors.
- Optional unified and integrated base frame to support drum and feeder. With top guarding for drum with mesh to side and top for inspection. Stainless discharge chutes. Adjustable Manganese splitter/baffle. Adjustable rubber buffers to prevent impact on drum surface. (Add $9,800).
- Optional control panel.
