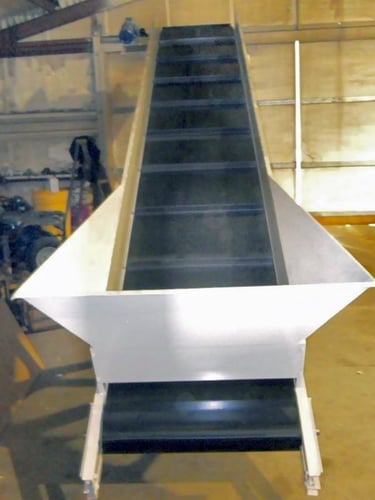

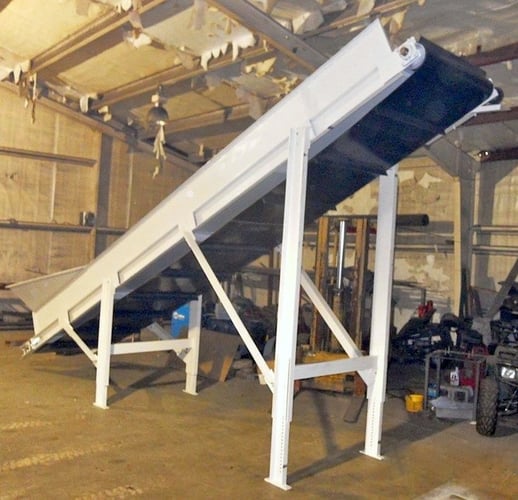

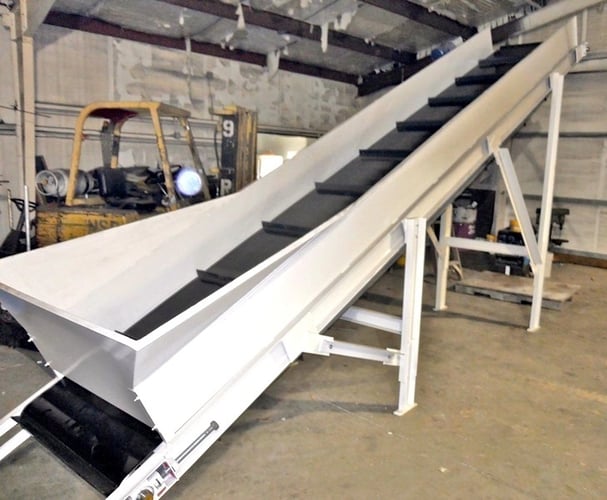

General Dimensions & Frame
Conveyor Style: Decline Style

Conveyor Length: 20 feet

Conveyor Width: 48 inches

Side Wall Height: 12 inches

Leg Adjustment: 6 inches of height adjustment on all legs

Heights & Application
Infeed Height (Hopper End): Approx. 6 feet from floor

Discharge Height: Approx. 42 inches from floor

Discharge Width: 60 inches

Intended Use: Box dumper or hand feeding

Belt & Rollers
Belt Type: Cleated Belt

Cleat Height: 2 inches

Cleat Spacing: 24-inch centers

Feed Roller: 6-inch diameter in a heavy-duty frame with belt alignment adjustment

Drive Roller: 8-inch diameter

Drive System
Power: 2 HP motor and gearbox
